Creating a visual lab environment on your local machine is an excellent way to test, learn, and experiment with different operating systems, services, and network topologies. Whether you’re a student, IT professional, or hobbyist, using virtualization software like VirtualBox or Hyper-V allows you to build isolated environments without needing extra hardware.
In this blog, we’ll walk you through setting up a visual lab using either VirtualBox or Hyper-V, compare the two, and offer tips to get the most out of your virtual lab.
What is a Visual Lab?
A visual lab is a virtual environment where you can simulate various IT infrastructures. It may include multiple virtual machines (VMs), networks, servers, and services. These labs are essential for:
- Learning IT and networking
- Testing software configurations
- Practicing for certifications (e.g., CompTIA, Cisco, Microsoft)
- Experimenting without affecting your host system
Choosing Between VirtualBox and Hyper-V
| Feature | VirtualBox | Hyper-V |
|---|---|---|
| OS Compatibility | Windows, macOS, Linux | Windows only (Pro/Enterprise Editions) |
| Ease of Use | User-friendly GUI | Integrated in Windows, but more advanced |
| Snapshot Support | Yes | Yes |
| Nested Virtualization | Yes | Yes (from Windows 10 version 1903+) |
| Performance | Good for general use | Better performance on Windows systems |
| Network Features | Advanced NAT, Bridged, Host-Only | Advanced virtual switches |
Verdict:
- Use VirtualBox if you’re on macOS/Linux or prefer a simpler UI.
- Use Hyper-V if you’re on Windows Pro/Enterprise and want native performance and integration.
How to Set Up a Visual Lab in VirtualBox
Step 1: Install VirtualBox
Download and install VirtualBox from https://www.virtualbox.org.
Step 2: Create Virtual Machines
- Open VirtualBox.
- Click New, set the VM name, OS type, and memory.
- Attach an ISO to install your desired OS.
Step 3: Configure Networking
- Use Host-Only or Internal Network mode to simulate isolated networks.
- Optionally, add Bridged Adapter to access the VM from other devices on the LAN.
Step 4: Use Snapshots
Snapshots let you save VM states, ideal for testing changes or reverting back quickly.
How to Set Up a Visual Lab in Hyper-V
Step 1: Enable Hyper-V
On Windows 10/11 Pro:

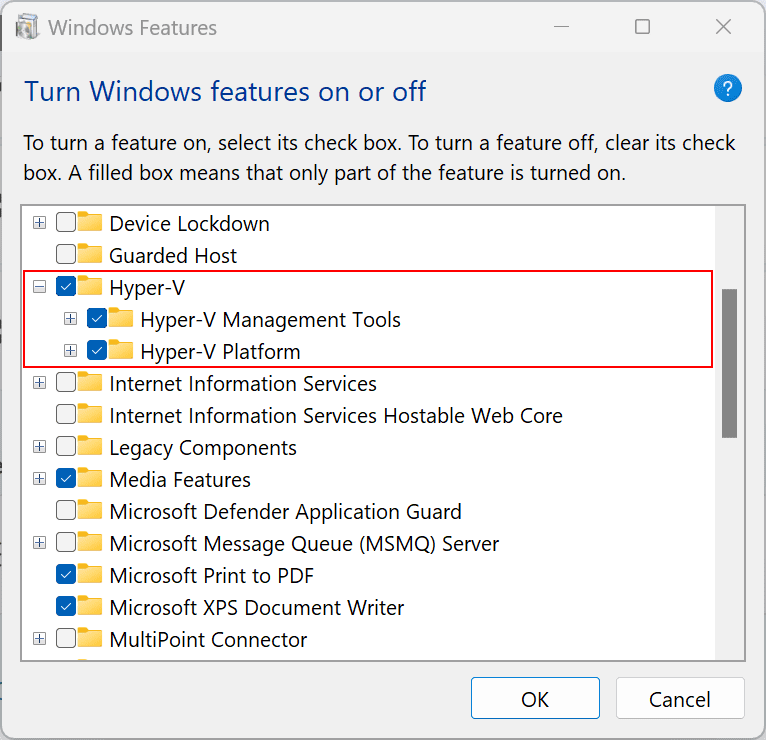

- Go to Control Panel > Programs > Turn Windows features on or off.
- Check Hyper-V and restart your system.
Step 2: Open Hyper-V Manager
- Launch Hyper-V Manager from Start menu.
- Click New > Virtual Machine and follow the wizard.
Step 3: Create Virtual Switches
- Go to Virtual Switch Manager to set up internal, external, or private networks.
Step 4: Install Operating Systems
Attach ISO images to install OS inside your VMs.
Step 5: Take Checkpoints
Use Checkpoints to save states before making changes, just like snapshots in VirtualBox.
Tips for Creating a Productive Visual Lab
- Use cloning to quickly replicate VMs.
- Assign adequate RAM and CPU but don’t over-allocate from host.
- Label your VMs clearly (e.g., DC01, Client01, Router01).
- Keep ISO images and base VMs organized in folders.
- Use VM groups (VirtualBox) or Hyper-V folders to manage large labs.
Visual Lab Setup with VirtualBox or Hyper-V (F.A.Q)
Can I run VirtualBox and Hyper-V together?
Not easily. Hyper-V takes control of hardware virtualization. If you need both, consider using third-party tools or disabling Hyper-V temporarily.
Is VirtualBox free?
Yes, VirtualBox is completely free and open-source.
Which is better for Linux labs?
VirtualBox, since it supports Linux hosts and has better cross-platform compatibility.
Can I simulate networks and routers?
Yes! Use multiple VMs and internal networking. You can also install software like pfSense or GNS3 for network simulation.
